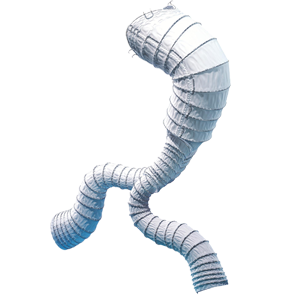

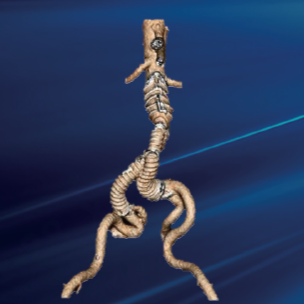

aorfix™ is an endovascular device designed for treating abdominal aortic aneurysms, particularly in patients with highly angulated or complex aortic anatomies. unique for its flexible, helical stent structure, aorfix™ can conform to proximal neck angles up to 90 degrees, providing an effective solution for patients who might otherwise be ineligible for traditional endovascular repair. this flexibility ensures a secure fit and reduces risks associated with endoleaks. the stent graft is made from proven materials as polyester and nitinol, and is delivered via a low-profile introduction system for precise deployment and minimally invasive approach. the integrated leave-behind sheath minimizes the risks of access vessels manipulation.

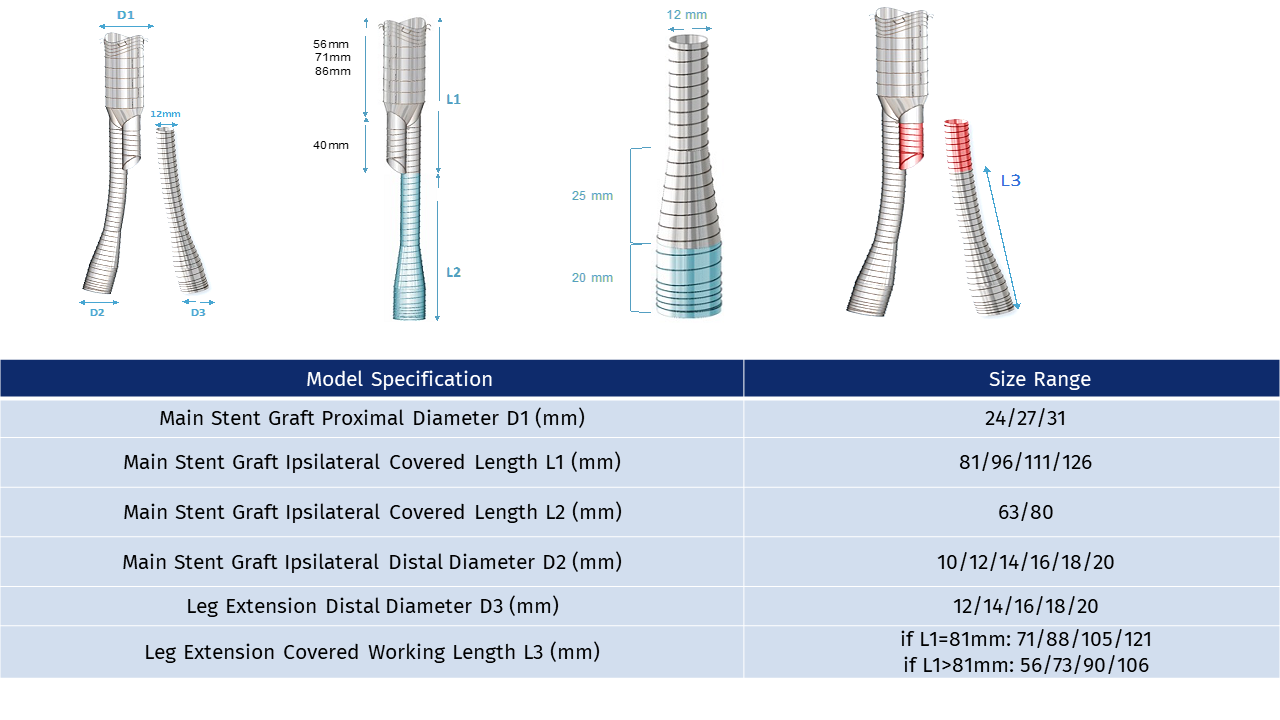

 stent graft

● bi- or tri-modular design according to physician’s preferences

● pararenal sealing thanks to fishmouth proximal design

● the proximal end of the device adapts to changes in diameter of the neck

● multiple rings at the proximal end of the main stent and at the distal end of the extensions enhance sealing and apposition points

● helical limb stent is highly flexible and can adapt to the most tortuous anatomies

delivery system

● hydrophilic coating of outer sheath

● 18-20fr inner diameter of delivery sheath

● leave-behind sheath

● y mechanism to control the proximal expansion
